Main technical datas
|

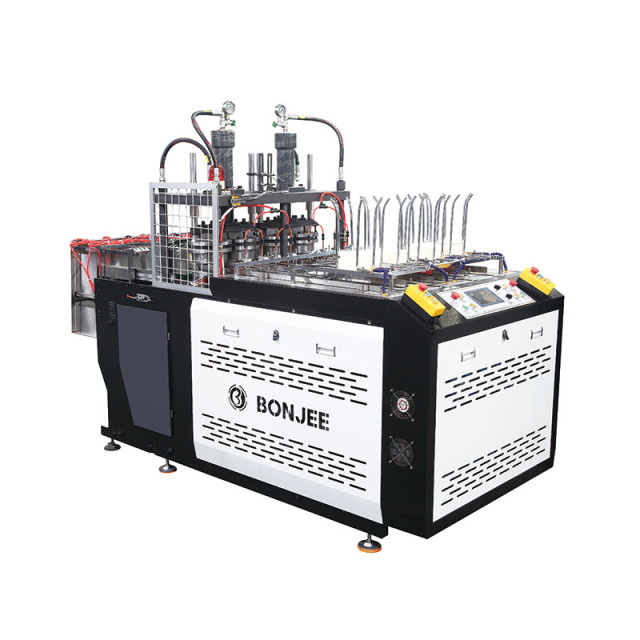

Type |
BJ-SGW500 |
|
Suitable material |
150-600gsm base paper ,cardboard ,ivory board ,aluminum foil paper or others |
|
Production speed |
150-200pcs/min (four workplaces) |
|
Plate specification |
5inch to 9inch ，max paper unfold size：235mm |
|
Rated power |
14KW (include hydraulic ) |
|
Total weight |
1800KGS |
|
Overall dimension |
2560*1450*2100mm |
|
Power source |
380V, 50HZ |
|
Airsupply |
Air compression : 0.8mpa ,air out put : 0.3—0.6 cbm/ min |
Model BJ-500B full Automatic hydraulic Paper Plate Forming Machine was developed and researched in order to meet the market requirement.
It is paper plate(dish）forming machine was designed and development on the base of traditional model BJ-400P double station paper plate machine.it has automatic paper-feeding,heating and forming,automatic out putting,constant temperature control,automatic counting and collecting etc function. it's an ideal equipment for round plate，square plate in production line.
BJ-SPT500J mechanical type automatic paper plates make machine is independently research and developed according to the market. It’s for plates in small sizes and shallow depth.
